The Autel MaxiCOM MK906 Pro is a professional automotive diagnostic tablet designed for workshops, independent garages and automotive technicians who need advanced vehicle diagnostics, bi-directional controls, ECU coding and a comprehensive range of service functions.

Powered by a Qualcomm octa-core processor and running on Android, the MK906 Pro combines a large 8-inch touchscreen with 128 GB of internal storage, 4 GB RAM and an 11,600 mAh battery. The included MaxiVCI V200 wireless communication interface provides fast and reliable communication between the diagnostic tablet and the vehicle.

With support for CAN FD and DoIP, comprehensive system diagnostics, active tests, AutoVIN, ECU coding and adaptations on supported vehicles, and more than 36 service functions, the MK906 Pro is suitable for a wide range of professional diagnostic and maintenance tasks.

Key Features

Full-System Vehicle Diagnostics

The MK906 Pro provides access to available electronic control systems across supported vehicles.

Technicians can:

• Read and clear diagnostic trouble codes (DTCs)
• View live data
• View freeze-frame data
• Access ECU information
• Perform system scans
• Run available active tests
• Perform supported adaptations and resets
• Generate diagnostic reports
• Identify vehicles automatically using AutoVIN

The actual systems and functions available depend on the vehicle’s make, model, year and ECU configuration.

Bi-Directional Control & Active Tests

The MK906 Pro supports active tests and bi-directional controls on supported vehicles.

This allows the technician to send commands to vehicle components and monitor their response, helping with component testing and fault diagnosis.

Depending on the vehicle, available tests may include components such as:

• Cooling fans
• Fuel pumps
• Injectors
• Solenoids
• Valves
• Motors
• Relays
• Windows
• Doors
• Lighting systems
• Other electronically controlled components

Available active tests vary by vehicle.

ECU Coding & Adaptations

The MK906 Pro supports ECU coding, configuration and adaptations on applicable vehicles.

These functions can be useful after replacing or configuring certain electronic control modules and components.

Available coding and adaptation functions vary considerably between manufacturers, models and ECUs.

36+ Service Functions

The MK906 Pro provides access to more than 36 service and maintenance functions, depending on vehicle coverage.

Common functions include:

• Oil Service Reset
• Electronic Parking Brake (EPB)
• Battery Management System (BMS)
• Steering Angle Sensor (SAS) Reset
• ABS Bleeding
• Diesel Particulate Filter (DPF) functions
• Injector Coding
• Throttle Adaptation
• TPMS functions
• Suspension functions
• Transmission Adaptation
• Airbag-related functions
• Immobiliser-related functions
• Headlamp functions
• Odometer functions
• And additional manufacturer-specific procedures

Important: service functions are vehicle-specific. Not every function is available on every vehicle.

DoIP & CAN FD Support

The MK906 Pro supports modern vehicle communication technologies including:

CAN FD

CAN FD provides increased data capacity and faster communication compared with traditional CAN on compatible vehicle systems.

DoIP

Diagnostics over Internet Protocol (DoIP) enables diagnostic communication over Ethernet on compatible vehicles and is increasingly used in newer vehicle architectures.

The MK906 Pro also supports a wide range of established automotive communication protocols.

AutoVIN Vehicle Identification

The MK906 Pro’s AutoVIN technology can automatically identify compatible vehicles, helping technicians begin diagnostic work more quickly.

Where supported, the system can retrieve vehicle identification information and automatically select the appropriate vehicle software.

FCA Secure Gateway Support

The MK906 Pro supports access to compatible FCA Secure Gateway systems through the appropriate authentication process.

Secure gateway access can allow authorised diagnostic functions on applicable FCA vehicles.

Note: authentication, account registration, subscriptions and/or other access requirements may apply depending on the vehicle and function.

Advanced Diagnostic Functions

The MK906 Pro provides a range of professional diagnostic features, including:

• Full-system scanning
• DTC reading and clearing
• Live data display
• Graphing of live parameters
• Freeze-frame data
• ECU information
• Active tests
• Bi-directional controls
• ECU coding
• Adaptations
• Special functions
• Service resets
• Diagnostic reports
• AutoVIN vehicle identification

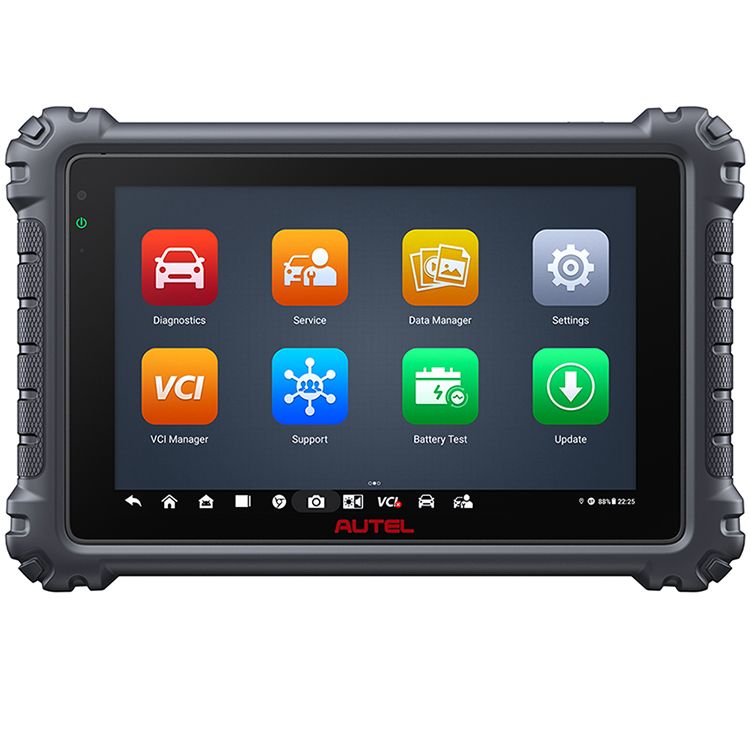

8-Inch Professional Diagnostic Tablet

The MK906 Pro features an 8-inch TFT-LED capacitive touchscreen with a 1920 × 1200 resolution, providing a clear interface for viewing diagnostic information, live data and test results.

Hardware Specifications

• Operating System: Android 10
• Processor: Qualcomm 660 Octa-Core
• RAM: 4 GB
• Internal Storage: 128 GB
• Display: 8-inch TFT-LED capacitive touchscreen
• Resolution: 1920 × 1200
• Battery: 11,600 mAh lithium-polymer
• Rear Camera: 16 MP with autofocus and flashlight
• Front Camera: 16 MP
• Wireless Communication: MaxiVCI V200
• Wi-Fi: Supported
• Bluetooth: Supported
• USB: Supported
• HDMI: Supported
• SD Card: Supported

Wide Vehicle Coverage

The Autel MK906 Pro is designed to diagnose a broad range of European, Asian and American vehicles, with coverage beginning from approximately 1996 onwards depending on the manufacturer.

Supported makes, systems and functions vary according to the vehicle’s:

• Make
• Model
• Year
• Engine
• ECU
• Market
• Software version

For this reason, specific diagnostic or coding functions should always be checked against the exact vehicle before purchase.

Supported Diagnostic Protocols

The MK906 Pro supports a wide range of automotive communication protocols, including:

• CAN FD
• DoIP / ISO 13400
• CAN ISO 11898
• ISO 15765-4
• ISO 9141-2
• ISO 14230-2
• SAE J1850 VPW
• SAE J1850 PWM
• SAE J1939
• SAE J1708
• K-Line
• L-Line
• TP 1.6
• TP 2.0
• Fault-Tolerant CAN
• GM UART
• Honda Diag-H
• UART Echo Byte

MaxiVCI V200 Wireless VCI

The included MaxiVCI V200 provides wireless communication between the MK906 Pro diagnostic tablet and the vehicle.

Its compact design allows technicians to carry out diagnostic procedures without being permanently connected to the vehicle by a long cable.

The VCI communicates with the MK906 Pro via Bluetooth and connects to the vehicle through the diagnostic interface.

Diagnostic Reports

The MK906 Pro can create diagnostic reports containing relevant vehicle and diagnostic information.

Reports can be useful for:

• Workshop records
• Customer documentation
• Before-and-after repair comparisons
• Fault-finding records
• Vehicle inspection documentation

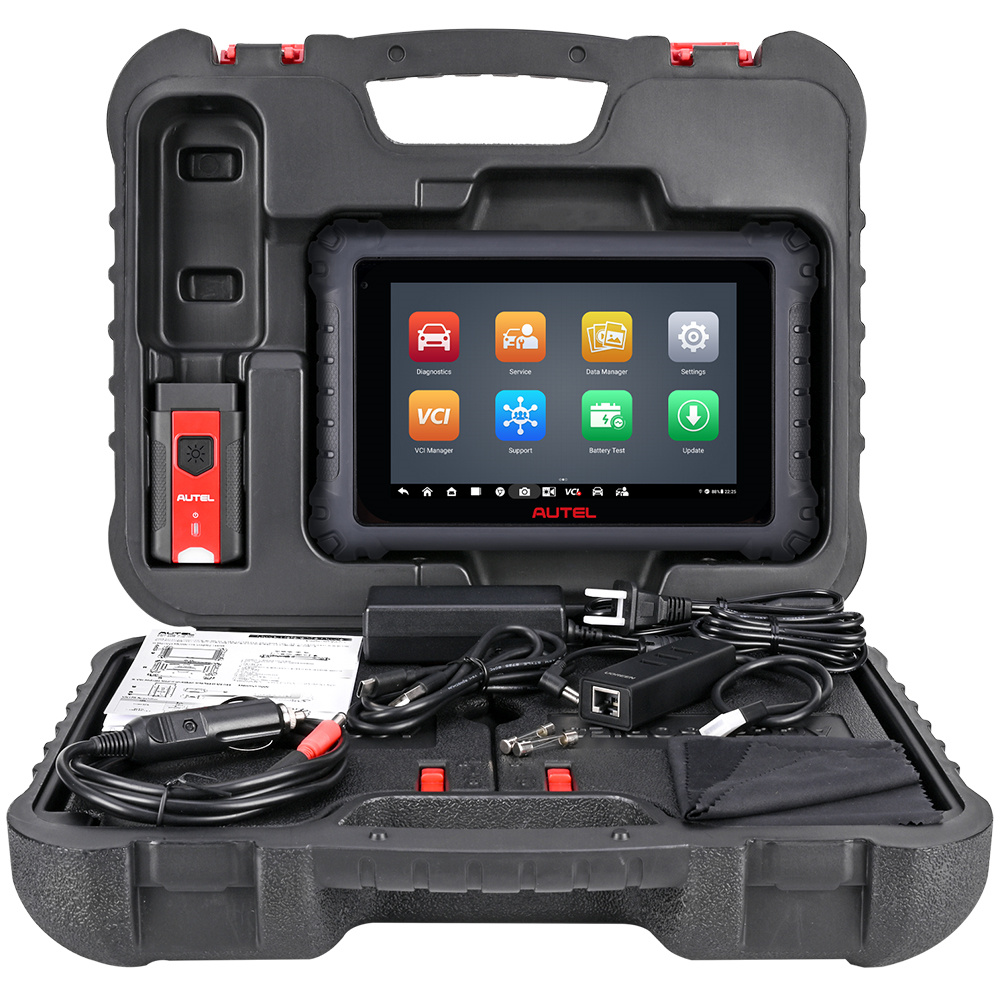

What’s Included

The Autel MaxiCOM MK906 Pro package includes:

• Autel MaxiCOM MK906 Pro diagnostic tablet
• MaxiVCI V200 wireless VCI
• AC/DC power adapter
• USB cable
• Auxiliary power outlet adapter
• Spare fuses
• USB-to-Ethernet adapter
• Carrying case
• Quick Reference Guide
• Packing list

Package contents may vary by market or distributor. Please check the supplied package for the exact contents.

Software Updates

The MK906 Pro is supplied with an included period of software updates according to Autel’s applicable product terms.

Software updates provide access to newer vehicle coverage, diagnostic improvements and updated functions.

After the included update period expires, continued software updates may require a paid subscription.

Professional Diagnostic Equipment for Modern Vehicles

The Autel MaxiCOM MK906 Pro combines advanced vehicle diagnostics, bi-directional testing, ECU coding and adaptations, service functions and modern communication protocols in a professional 8-inch diagnostic platform.

With CAN FD, DoIP, AutoVIN, active tests, 36+ service functions and support for ECU coding on applicable vehicles, the MK906 Pro is designed for technicians who require more than basic code reading and clearing.

Please note: diagnostic, coding, active-test and service functions depend on the specific vehicle, ECU, software version and manufacturer coverage. Always verify the required function for your particular vehicle before purchase.

1 Year warranty and after warranty service available. 1 Year Free Online Updates.
Price Inc. VAT and Postage (VAT Receipts Available)
