Autel MaxiIM KM100E Universal Key Programmer & Smart Key Tool

Stock located in Dublin. Fast and free delivery across Ireland.

The Autel MaxiIM KM100E is a professional automotive key and immobiliser programming tool designed for locksmiths, garages, automotive electricians and vehicle technicians.

Combining universal smart key generation, IMMO programming, transponder functions and key renewal in a compact Android-based touchscreen tablet, the KM100E provides a practical solution for adding and programming keys on a wide range of supported vehicles.

Key Features

Universal Smart Key Programming

Program compatible Autel IKEY universal smart keys for supported vehicles. The KM100E can generate and program compatible replacement smart keys and allows key-button functions to be customised on supported Autel universal keys.

IMMO Key Programming via OBD

Connect to the vehicle through the supplied Bluetooth VCI and access supported immobiliser functions, including:

• Key learning
• Add-key functions
• Remote control learning
• Remote control add
• IMMO status scanning
• Vehicle IMMO information
• VIN and supported immobiliser information

Available functions depend on the vehicle make, model, year and immobiliser system.

Transponder Reading & Cloning

The KM100E provides dedicated transponder functions for supported systems, including:

• Transponder identification
• Chip and IMMO type detection
• Transponder ID and status information
• Supported transponder cloning
• Transponder generation
• Transponder simulation
• Transponder editing
• Supported Ford ID63 / ID83 conversion

Smart Key Frequency Detection

Use the built-in frequency detection function to identify the operating frequency of compatible vehicle smart keys and display signal information.

Key Renewal / Unlocking

The KM100E supports key unlocking and renewal for compatible used smart keys, allowing supported keys to be renewed for reuse. Compatibility varies according to vehicle make, model, key type and software coverage.

Guided Operation

The KM100E provides step-by-step on-screen instructions for supported key programming procedures, making the workflow easier to follow for professional users.

AutoVIN

The tool can use AutoVIN/VIN identification to help identify the vehicle and select the appropriate programming functions.

Wide Vehicle Coverage

The KM100E provides IMMO and key programming coverage across many popular vehicle manufacturers, including applications for brands such as:

• BMW
• Volkswagen
• Toyota
• Honda
• General Motors
• Ford
• And many other supported makes

Important: Vehicle and key coverage varies by make, model, year, immobiliser system and software version. Always check the current Autel vehicle coverage before purchasing for a specific vehicle.

5.5-Inch Android Touchscreen

The KM100E features a compact 5.5-inch touchscreen tablet with an Android operating system, 2GB RAM and 64GB internal storage.

Technical Specifications

• Display: 5.5-inch touchscreen
• Resolution: 1280 × 720
• Processor: Rockchip PX30 quad-core ARM Cortex-A35, up to 1.5GHz
• Memory: 2GB RAM
• Storage: 64GB
• Operating System: Android
• Camera: 8MP
• Wireless: Wi-Fi and Bluetooth
• USB: USB Type-C
• Battery: 4950mAh lithium-polymer
• VCI: MaxiVCI V200
• Dimensions: 200 × 89 × 22mm
• Weight: 352.7g

Ideal For

• Automotive locksmiths
• Key programming specialists
• Vehicle repair workshops
• Automotive electricians
• Vehicle electronics technicians
• Professional garages
• Advanced automotive technicians

Important Compatibility Information

The Autel KM100E is a key and immobiliser programming tool, rather than a general-purpose full-system diagnostic scanner. Functions available on the vehicle depend on the specific make, model, year, immobiliser system and current Autel software coverage.

Some advanced procedures may require additional equipment, credentials, security access or specific key/transponder hardware.

For legal and authorised use only. Always ensure you have legitimate access to the vehicle and appropriate permission from the vehicle owner before performing key or immobiliser programming.

Package Contents

Package contents can vary depending on the KM100E bundle supplied. Please verify the exact contents of your selected package before ordering.

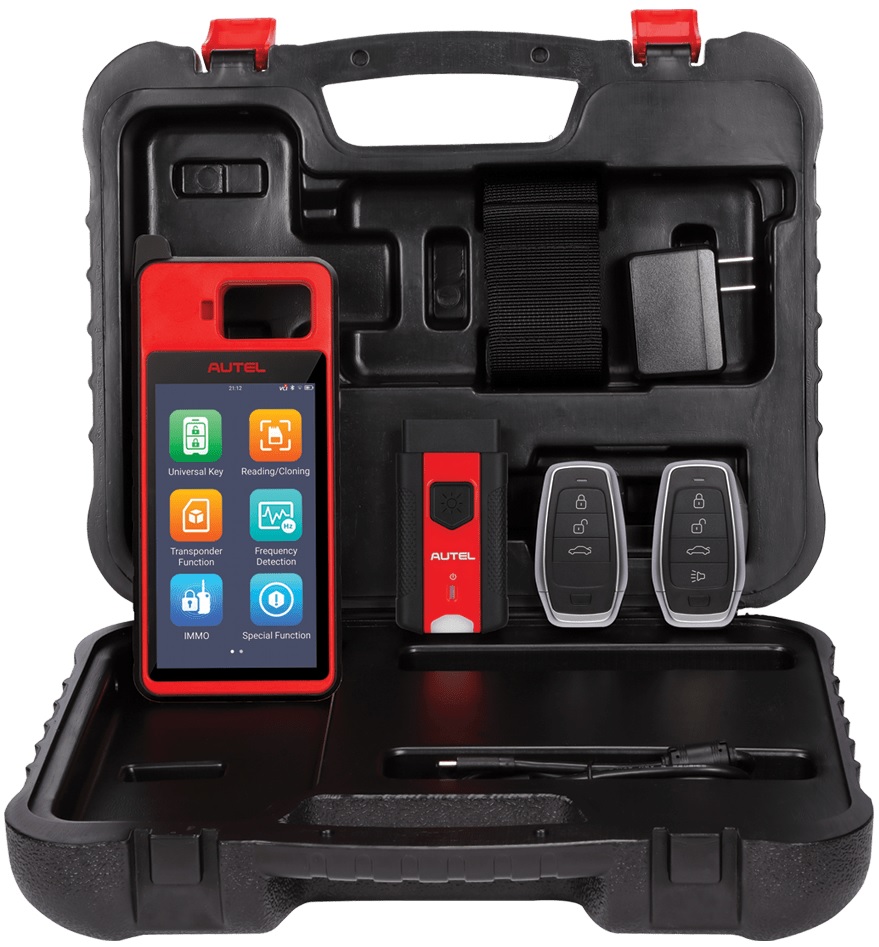

Typical equipment includes the KM100E tablet, MaxiVCI V200 vehicle communication interface, USB/charging accessories and protective carrying case.

Please note: Autel IKEY universal smart keys may be supplied separately or included depending on the specific package.

Why Choose the Autel KM100E?

The KM100E combines key generation, immobiliser programming, transponder functions and smart-key servicing in one compact professional tool. Its guided interface and wireless vehicle communication make it suitable for mobile locksmiths, workshops and automotive professionals who regularly perform authorised key programming and immobiliser services.

1 Year warranty and after warranty service available.
Price Inc. VAT and Postage (VAT Receipts Available)
