Autel MaxiSYS Ultra EV 2026 + MSOAK

Pre-Order Only !

Advanced EV, Hybrid & Vehicle Diagnostic Platform with 5-in-1 VCMI and MSOAK Oscilloscope Kit

The Autel MaxiSYS Ultra EV 2026 is a professional-level diagnostic and programming platform designed for workshops working with electric, hybrid, petrol and diesel vehicles. It combines advanced vehicle diagnostics with dedicated high-voltage and battery analysis, ECU coding and programming, topology mapping, guided functions and advanced electrical measurement.

The Ultra EV is particularly suited to modern EV and hybrid diagnostics, providing detailed analysis of high-voltage systems and battery packs. Using the dedicated EVDiag Box and supplied EV accessories, technicians can perform battery-pack analysis either through the vehicle diagnostic connection or directly where supported.

The system provides detailed high-voltage system diagrams, component and connector information, and guided procedures to help technicians diagnose and work on EV systems more efficiently.

Key Features

• EV, Hybrid, Petrol & Diesel diagnostics
• Advanced high-voltage system diagnostics
• EV battery-pack analysis, including State of Charge (SoC) and State of Health (SoH) information on supported vehicles
• ECU topology mapping for visualisation of vehicle network and system architecture
• Auto Scan 2.0 for comprehensive vehicle system scanning
• Advanced ECU coding and programming
• J2534 Pass-Thru programming compatibility
• Bi-directional / active testing on supported vehicles
• Guided Functions and intelligent diagnostic assistance
• 40+ service functions covering common maintenance and repair procedures
• Remote Expert support capability
• Multi-tasking and split-screen operation
• Cloud-based Data Manager for customer, vehicle and diagnostic records
• Interactive Data Logging for troubleshooting and support

MaxiFlash VCMI 5-in-1

The included MaxiFlash VCMI combines several professional diagnostic and measurement tools into one interface:

• Bluetooth vehicle communication interface
• 4-channel oscilloscope
• Waveform generator
• Digital multimeter
• CAN Bus tester
• J2534 Pass-Thru programming interface

This makes the Ultra EV suitable not only for code-based diagnostics but also for investigating difficult electrical, electronic and communication faults.

EV & Battery Diagnostics

The Ultra EV is designed specifically to provide deeper diagnostics for modern electric and hybrid vehicles.

Depending on vehicle support, technicians can analyse:

• High-voltage system faults
• Battery-pack data
• State of Charge (SoC)
• State of Health (SoH)
• Battery voltage and related parameters
• High-voltage components and system topology
• Live data and diagnostic trouble codes

The system also provides graphical high-voltage system information and guided connection and diagnostic procedures.

ECU Coding & Programming

The MaxiSYS Ultra EV supports advanced ECU functions, including ECU coding and J2534-compatible programming on supported vehicles.

This can be used for tasks such as ECU replacement, software programming, coding and configuration following vehicle repairs, subject to vehicle manufacturer coverage and applicable software or security requirements.

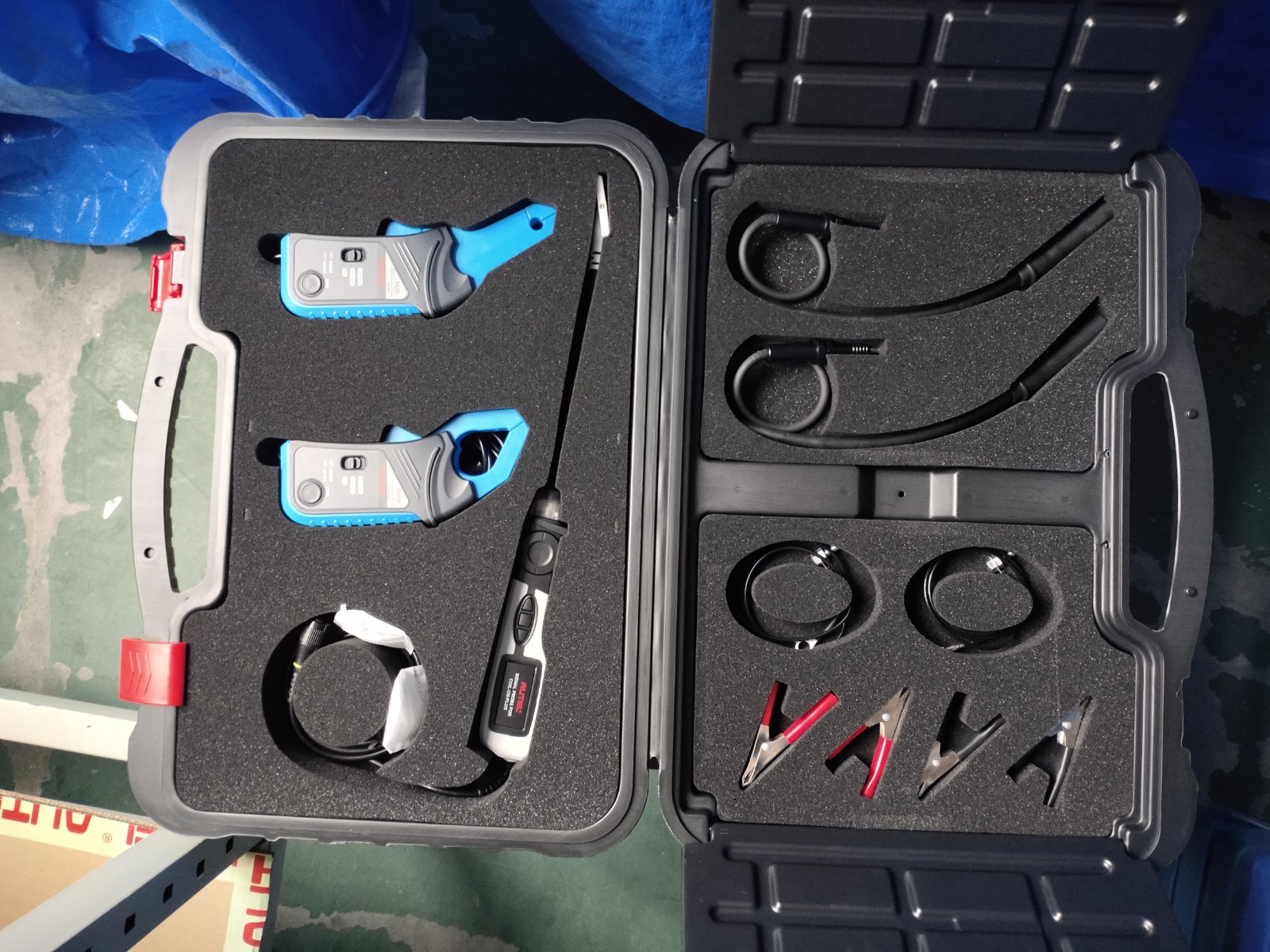

MSOAK Oscilloscope Accessory Kit Included

This package includes the Autel MaxiSYS MSOAK Oscilloscope Accessory Kit, extending the electrical testing capabilities of the VCMI.

The MSOAK includes:

• 1 × 65A AC/DC Current Clamp
• 1 × 650A AC/DC Current Clamp
• 1 × Coil-on-Plug Probe
• 2 × HT Extension Leads
• 2 × Battery Clips
• Blow-moulded carrying case

The current clamps allow non-invasive AC/DC current measurement, while the Coil-on-Plug probe can be used to capture ignition waveforms and investigate engine and electrical faults.

12.7″ High-Resolution Touchscreen

The Ultra EV features a large 12.7-inch TFT-LCD touchscreen with 2732 × 2048 resolution, providing a detailed workspace for diagnostic data, live parameters, wiring information, topology diagrams and oscilloscope waveforms.

The tablet provides:

• 4GB RAM
• 256GB internal storage
• 18,000mAh battery
• Wi-Fi
• Bluetooth
• GPS
• USB connectivity
• HDMI 2.0
• MicroSD support up to 256GB
• 16MP rear camera
• 5MP front camera

2025 Technical Specifications

Operating System: Android 11.0
Processor: Octa-Core
RAM: 4GB
Storage: 256GB
Display: 12.7″ TFT-LCD, 2732 × 2048
Battery: 18,000mAh, 3.8V lithium-polymer
Rear Camera: 16MP with autofocus and flash
Front Camera: 5MP
Wireless: Wi-Fi, Bluetooth, GPS
USB: USB 2.0
HDMI: HDMI 2.0
SD Card: Up to 256GB
Dimensions: 366.5 × 280.9 × 34mm
Weight: Approx. 2.18kg

Package Highlights

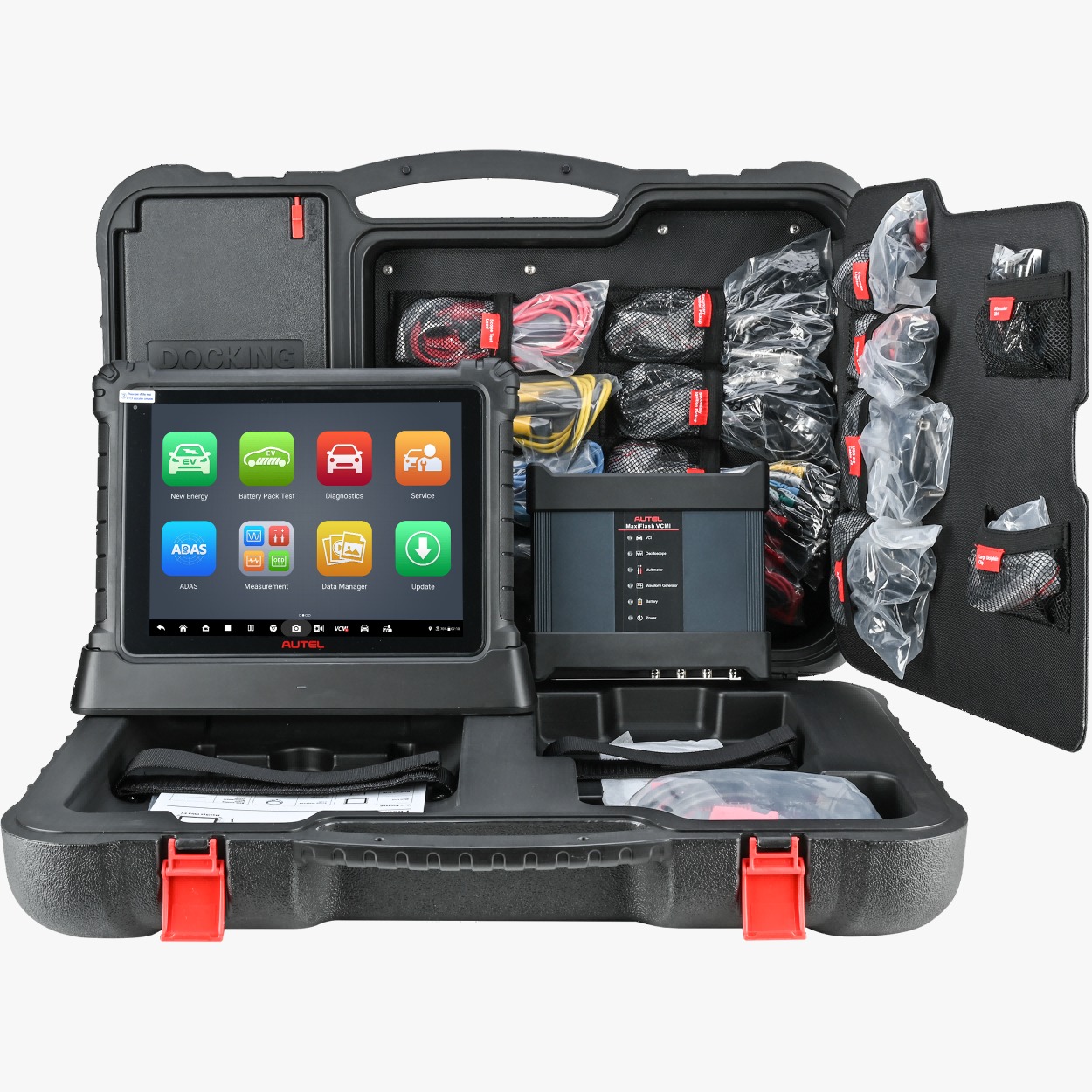

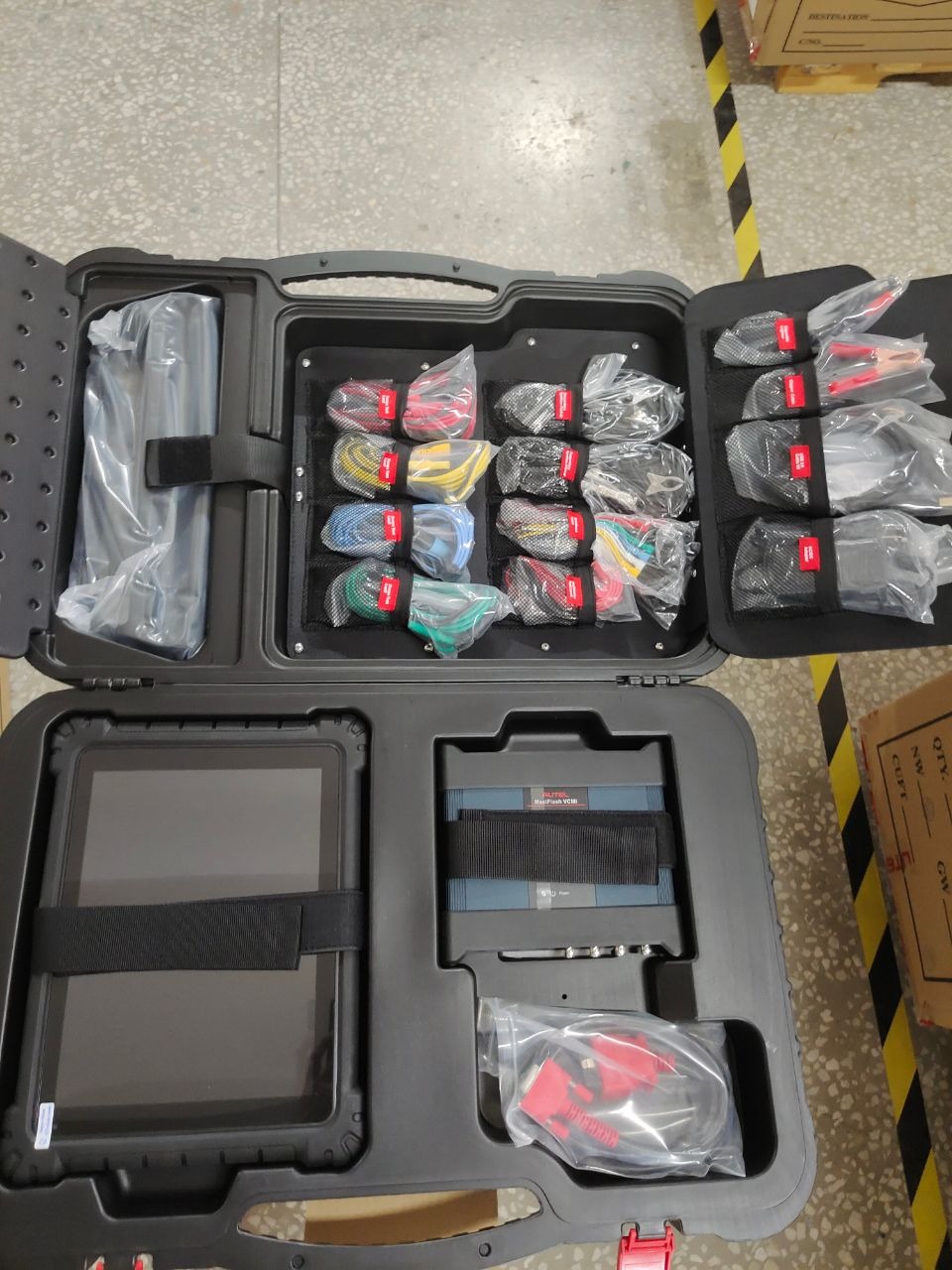

The Autel MaxiSYS Ultra EV 2026 + MSOAK package combines:

• MaxiSYS Ultra EV diagnostic tablet
• MaxiFlash VCMI 5-in-1 interface

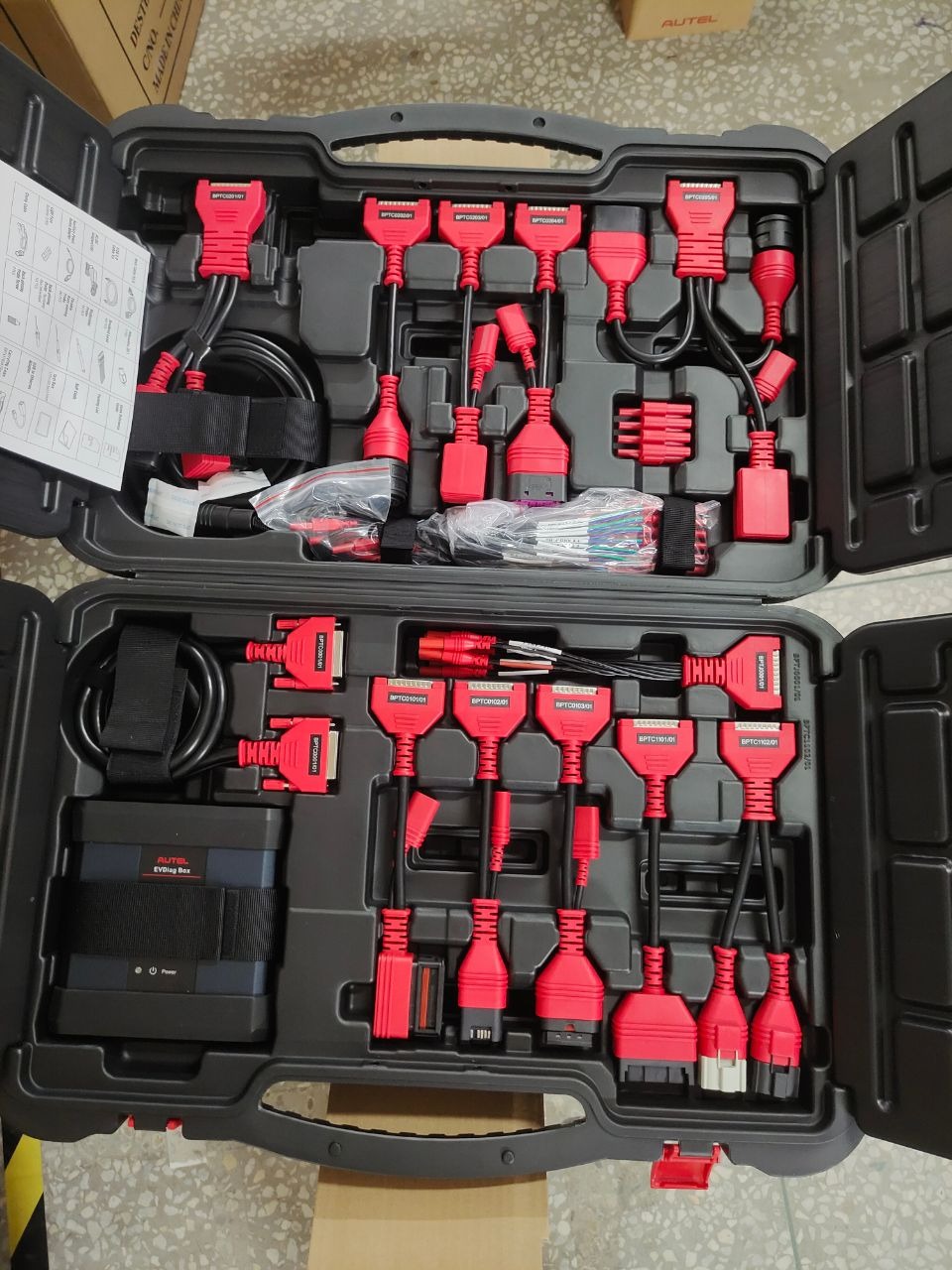

• Dedicated EVDiag Box
• EV diagnostic accessories
• Diagnostic and programming cables
• MSOAK Oscilloscope Accessory Kit
• Current clamps
• Coil-on-Plug probe
• HT extension leads
• Battery clips
• Carrying/storage cases

Software updates: 2 years free online updates as supplied with this package.
Warranty: 1 year warranty, with after-warranty service available.

Functions, vehicle coverage and programming capabilities vary by vehicle make, model, year and market. Some manufacturer-specific functions, security gateway access, programming services and additional features may require separate subscriptions, tokens, credentials or other requirements.

2 Years Free Online Updates.
1 Year warranty and after warranty service available.
Price Inc. VAT and Postage (VAT Receipts Available).
