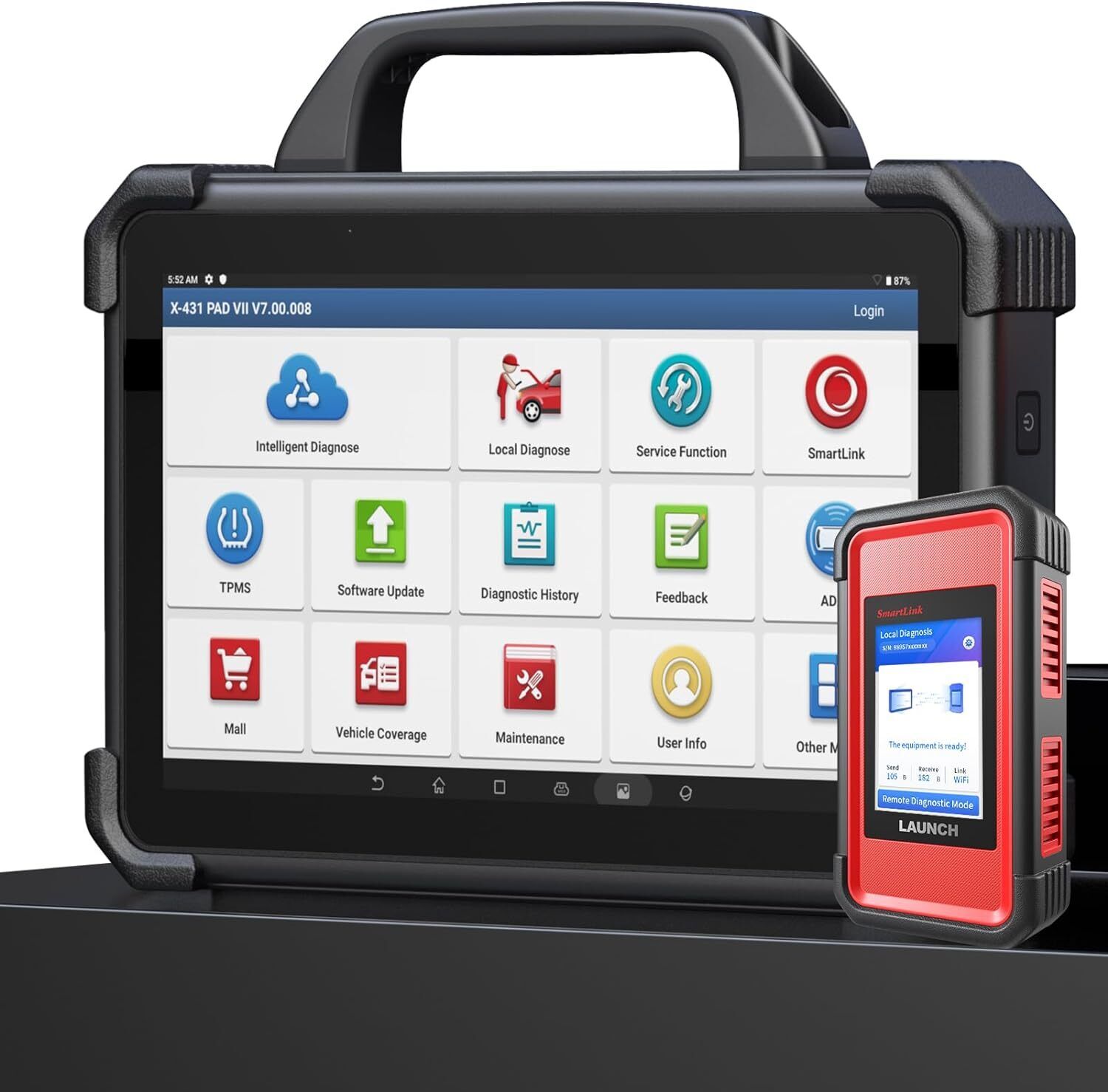

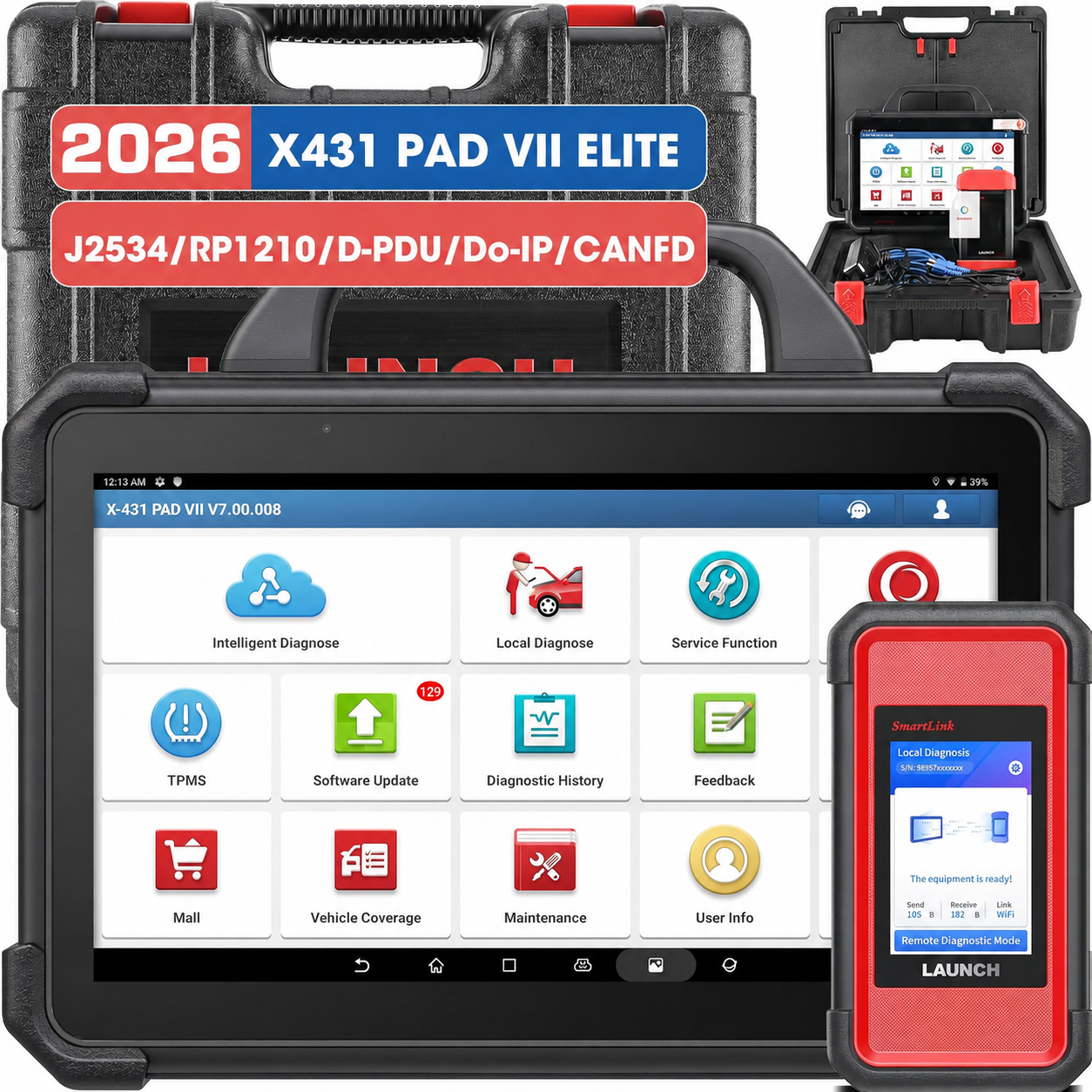

LAUNCH X431 PAD VII Elite – Professional Diagnostic & ECU Programming Machine

Stock located in Dublin. Fast and free delivery across Ireland.

The LAUNCH X431 PAD VII Elite is a professional-grade automotive diagnostic platform designed for independent garages, automotive technicians, diagnostic specialists and workshops that need advanced vehicle diagnostics, coding and programming in one powerful system.

Built around a large 13.3-inch Full HD IPS touchscreen, an 8-core 2.0 GHz processor, 8 GB RAM and 256 GB internal storage, the PAD VII Elite provides the performance and workspace needed for demanding diagnostic jobs.

Combined with the LAUNCH SmartLink C VCI, it supports advanced vehicle communication technologies including CAN FD and DoIP, as well as professional diagnostic standards such as J2534, D-PDU and RP1210.

Advanced Full-System Diagnostics

The PAD VII Elite can communicate with multiple vehicle control modules and perform comprehensive diagnostics, including:

• Read and clear diagnostic trouble codes (DTCs)
• View live data and ECU parameters
• ECU identification
• Full-system scanning
• Active tests / bi-directional controls
• Actuator and component testing
• Vehicle health reports
• Auto VIN identification
• Advanced ECU coding
• ECU programming and reprogramming
• Topology mapping
• Guided diagnostic functions

Topology Mapping provides a visual overview of vehicle communication and control-module status, helping technicians identify faults more efficiently.

ECU Coding & Programming

The PAD VII Elite is designed for advanced diagnostic work where standard code reading is not enough.

With support for professional communication standards including J2534, D-PDU and RP1210, the SmartLink C VCI can be used for supported ECU programming and OEM-style diagnostic applications.

Advanced coding functions allow technicians to configure and adapt supported vehicle control modules after component replacement, retrofit work or repairs.

Important: ECU programming, online coding and manufacturer-specific functions depend on the vehicle, ECU, software coverage, internet access and applicable manufacturer/licensing requirements.

CAN FD & DoIP Support

The SmartLink C supports modern vehicle communication technologies including:

• CAN
• CAN FD
• DoIP (Diagnostics over Internet Protocol)
• J2534
• D-PDU
• RP1210

This makes the PAD VII Elite suitable for diagnostics on many modern vehicles using newer high-speed communication architectures.

Bi-Directional / Active Testing

With supported vehicles, the PAD VII Elite can perform bi-directional controls, allowing technicians to command vehicle components and verify their operation.

Depending on vehicle coverage, examples can include:

• Cooling fans
• Fuel pumps
• Injectors
• Relays
• Solenoids
• Windows
• Locks
• Lights
• HVAC components
• Throttle systems
• Other electronically controlled components

This can help technicians distinguish between an electrical/control problem and a mechanical or component fault.

60+ Service & Maintenance Functions

The PAD VII Elite provides an extensive range of service and maintenance functions, with availability depending on vehicle coverage and software version.

Common functions include:

• Oil service reset
• Electronic parking brake (EPB)
• Battery registration / BMS
• Diesel particulate filter (DPF) functions
• Throttle relearn
• Steering angle sensor calibration
• Injector coding
• Transmission relearn / adaptation
• ABS bleeding
• TPMS-related functions
• Suspension calibration
• Airbag service functions
• AdBlue / SCR-related functions
• EGR-related functions
• Gearbox adaptation
• Key and immobiliser-related functions on supported vehicles

The exact service functions available vary by manufacturer, model, year and control module.

ADAS Calibration Capability

The X431 PAD VII Elite can be expanded for ADAS calibration using compatible LAUNCH equipment.

This allows workshops to build a more complete diagnostic and calibration solution for supported systems such as:

• Camera calibration
• Radar calibration
• Lane-departure systems
• Adaptive cruise control
• Parking and driver-assistance systems

ADAS calibration hardware is an additional requirement and is not included as standard unless specifically stated in the package.

TPMS, IMMO & Additional Functions

The PAD VII Elite is designed as an expandable diagnostic platform and can be used with compatible LAUNCH accessories and modules.

Depending on the configuration, the platform can be expanded for applications such as:

• TPMS diagnostics and programming
• Advanced key and immobiliser work
• ADAS calibration
• Heavy-duty vehicle diagnostics
• EV / new-energy vehicle diagnostics
• Battery testing
• Oscilloscope testing
• Videoscope inspection
• Sensor testing

Additional modules, adapters, licences or software may be required.

Professional SmartLink C VCI

The included SmartLink C provides the communication interface between the PAD VII Elite and the vehicle.

It supports wireless communication as well as wired connections and is designed for professional workshop use.

The SmartLink C supports a wide operating voltage range of approximately 9–36 V, making it suitable for both passenger-vehicle applications and supported commercial-vehicle environments.

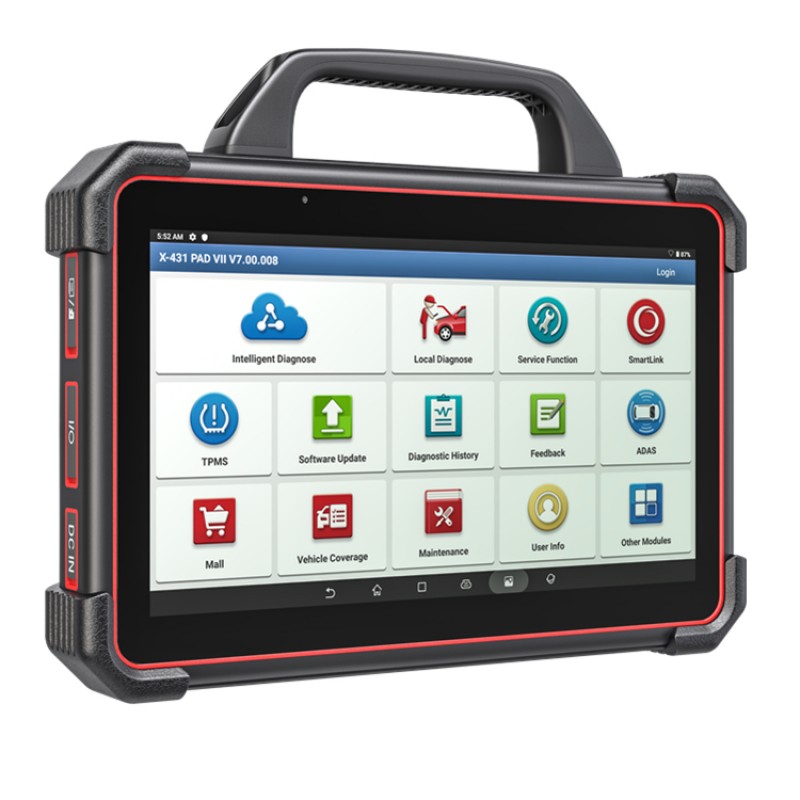

Large 13.3″ Professional Display

The PAD VII Elite features a large:

13.3-inch IPS touchscreen
1920 × 1080 Full HD resolution

The larger display provides more room for live-data graphs, diagnostic information, wiring/diagnostic screens and multi-parameter readings, making it particularly useful during workshop diagnostics.

High-Performance Hardware

Operating System: Android 9.0
Processor: Octa-core 2.0 GHz
RAM: 8 GB
Storage: 256 GB
Display: 13.3″ IPS, 1920 × 1080
Rear Camera: 13 MP
Front Camera: 8 MP
Wi-Fi: Dual-band 2.4 GHz / 5 GHz
Operating Temperature: 0°C to 50°C
Dimensions: Approx. 353 × 236 × 71 mm

The tablet also features USB connectivity and Micro HDMI output according to published hardware specifications.

Built for Workshop Use

The PAD VII Elite is designed for demanding workshop environments. LAUNCH’s published specifications list IP65 protection for the tablet, providing resistance against dust and water exposure under the specified test conditions.

Its integrated support/stand design also allows the tablet to be positioned conveniently while working around the vehicle.

Vehicle Coverage

The X431 PAD VII Elite is intended for broad coverage across European, Asian and American vehicles, with LAUNCH stating coverage of more than 110 brands for the PAD 7 platform.

Coverage and available functions vary by vehicle manufacturer, model, year, engine, ECU and software version.

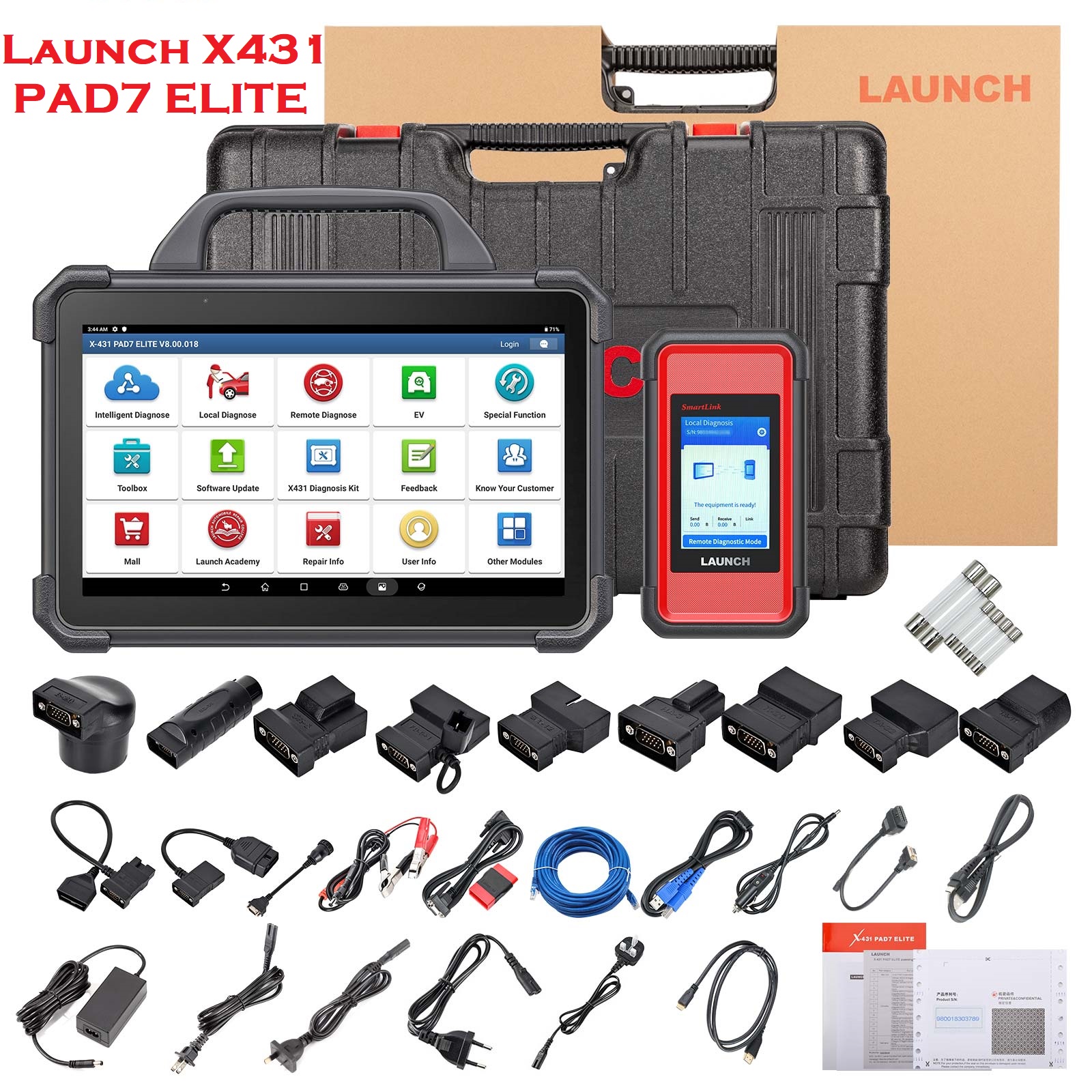

What’s Included

The standard package may include:

• LAUNCH X431 PAD VII Elite tablet
• SmartLink C diagnostic VCI
• OBD-II diagnostic cable
• OBD-II extension cable
• Battery clamps cable
• Cigarette-lighter power cable
• USB cables
• Power adapter
• Non-16-pin / OBD-I adapter connections
• Carrying case
• Quick-start documentation
• User documentation

Package contents can vary by regional version and supplier. Please check the exact package supplied with your order.

Ideal For

The LAUNCH X431 PAD VII Elite is suitable for:

• Independent automotive garages
• Professional diagnostic technicians
• Automotive electricians
• ECU specialists
• Vehicle repair workshops
• Coding and programming specialists
• Dealership-independent specialists
• Workshops looking for an expandable ADAS/TPMS/IMMO solution

Professional Diagnostics Without Compromise

With full-system diagnostics, advanced coding, ECU programming capability, bi-directional testing, modern CAN FD and DoIP communication, topology mapping and a wide range of service functions, the LAUNCH X431 PAD VII Elite is built for workshops that need more than a basic OBD scanner.

Please note: Some advanced functions require internet access, manufacturer security access, additional software licences, optional LAUNCH modules or additional hardware. Vehicle coverage and functions can vary by model, year and ECU.

2 Year Free Online Updates.
1 Year warranty and after warranty service available.
Price inc. 23% VAT, receipts available.
