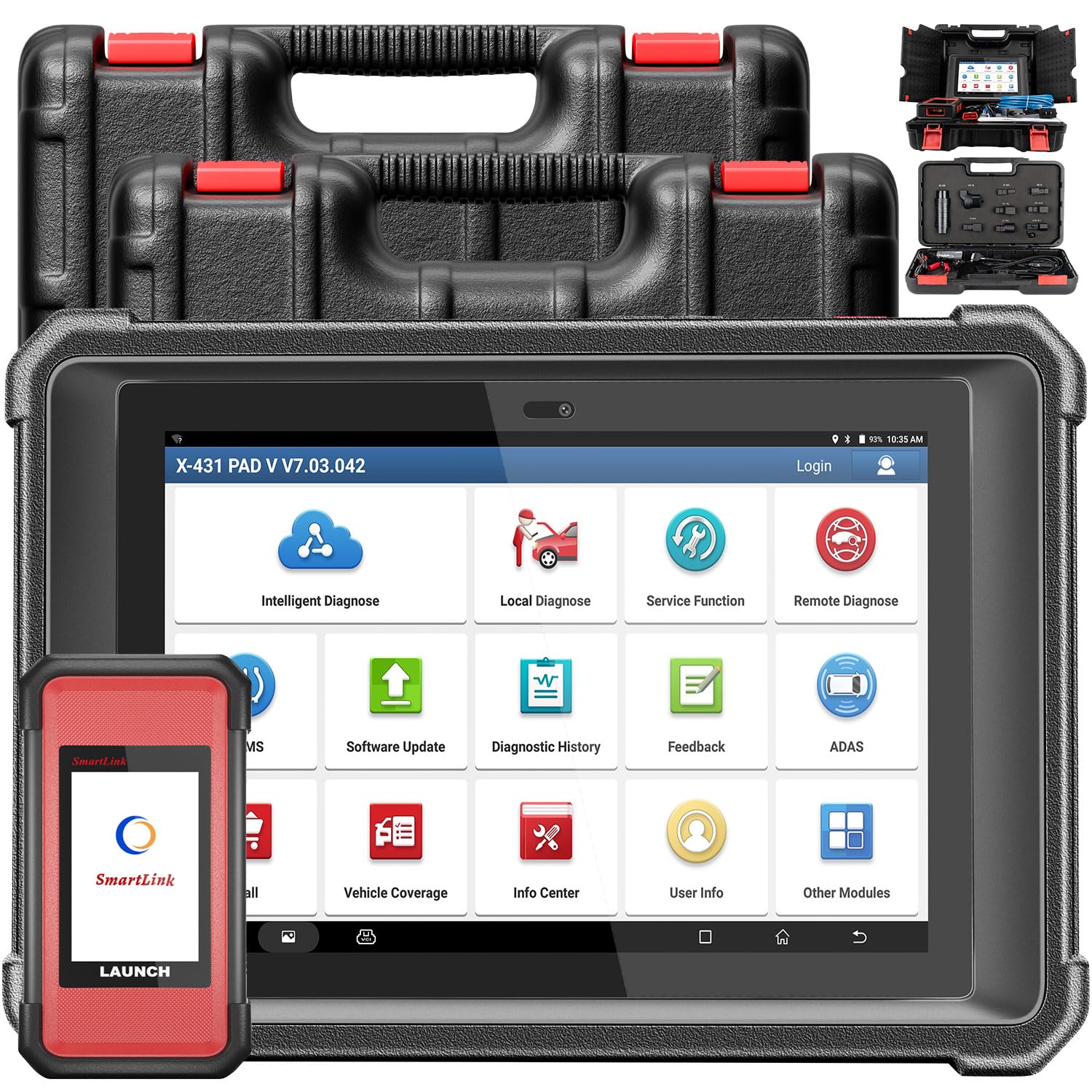

LAUNCH X-431 PAD 5 ELITE Professional Diagnostic Scanner

Professional-level diagnostics, coding, programming and bi-directional control

The LAUNCH X-431 PAD 5 ELITE is a high-end professional diagnostic platform designed for automotive workshops, technicians and advanced vehicle diagnostics. It combines full-system diagnostics with bi-directional/active tests, ECU coding, online programming, guided functions and advanced service functions in a rugged 10.1-inch workshop tablet.

The PAD 5 ELITE supports a wide range of European, Asian and American vehicles and is designed to provide comprehensive access to vehicle control systems, helping technicians diagnose faults, test components and carry out advanced repair procedures more efficiently.

Key Features

Full-System Diagnostics

Access and diagnose multiple vehicle control modules rather than relying only on basic engine fault codes.

The PAD 5 ELITE can read and clear diagnostic trouble codes (DTCs), display live data, graph parameters and perform system and component tests across supported vehicle systems.

Typical systems include:

• Engine / ECU
• Automatic transmission
• ABS
• Airbag / SRS
• Body control modules
• Instrument cluster
• HVAC / climate control
• Steering systems
• Parking systems
• TPMS
• ADAS-related systems
• And many other vehicle modules, depending on vehicle make and model

Bi-Directional / Active Testing

One of the major advantages of the PAD 5 ELITE is its bi-directional control capability.

Where supported by the vehicle, technicians can command individual components and systems to operate, allowing faults to be investigated without relying solely on fault codes.

Examples can include:

• Activating fuel pumps
• Testing cooling fans
• Operating injectors
• Testing relays and solenoids
• Activating windows and locks
• Testing lights
• Controlling valves and actuators
• Performing component activation tests

Available tests vary according to the vehicle manufacturer, model and control module.

ECU Coding & Advanced Programming

The PAD 5 ELITE supports advanced coding and programming functions on supported vehicles.

It can be used for procedures such as:

• ECU coding
• Control-module configuration
• Component replacement procedures
• Adaptations
• Matching and relearning
• Online coding
• ECU programming on supported vehicles

The included SmartLink VCI also provides support for advanced communication protocols including J2534, DoIP and CAN FD, making the PAD 5 ELITE suitable for more advanced diagnostic and programming work.

Important: ECU programming and online coding availability depends on the vehicle manufacturer, model, ECU and software coverage. Some procedures may also require manufacturer authentication, subscriptions or additional equipment.

J2534 Pass-Thru

The SmartLink interface can operate as a J2534 Pass-Thru device, allowing compatible OEM diagnostic/programming software to communicate with the vehicle.

This can be particularly useful for workshops carrying out manufacturer-level programming procedures where OEM software is required.

DoIP & CAN FD

The PAD 5 ELITE supports modern vehicle communication technologies including:

DoIP (Diagnostics over Internet Protocol)
Used by an increasing number of newer vehicles for high-speed diagnostic communication.

CAN FD (CAN with Flexible Data Rate)
A newer generation of CAN communication used by many modern vehicle platforms.

Support for these protocols helps the PAD 5 ELITE remain suitable for newer vehicle architectures.

Auto VIN Identification

The system can automatically identify the vehicle VIN on supported vehicles, helping speed up vehicle selection and diagnostic setup.

Guided Functions

The PAD 5 ELITE provides guided diagnostic functions for supported vehicle manufacturers, including Volkswagen and Audi applications.

Guided procedures can assist technicians with matching, calibration, adaptation and other service operations.

Service & Maintenance Functions

The PAD 5 ELITE provides a broad range of service and maintenance functions. Depending on vehicle coverage and software version, these may include:

• Oil service reset
• Electronic parking brake (EPB)
• Battery registration / BMS
• Steering angle sensor (SAS)
• ABS bleeding
• DPF regeneration
• Throttle adaptation
• Injector coding
• Gearbox / transmission adaptation
• TPMS functions
• Air suspension calibration / matching
• Sunroof initialization
• Headlamp adjustment
• EGR-related functions
• AdBlue / SCR-related functions
• NOx sensor functions
• Window calibration
• Seat calibration
• And other manufacturer-specific service procedures

The exact functions available depend on the vehicle and current LAUNCH software coverage.

ADAS Calibration Capability

The PAD 5 ELITE supports ADAS calibration functions, with compatible ADAS calibration equipment available as an additional/optional solution.

This makes the platform suitable for workshops looking to expand into advanced driver assistance system diagnostics and calibration.

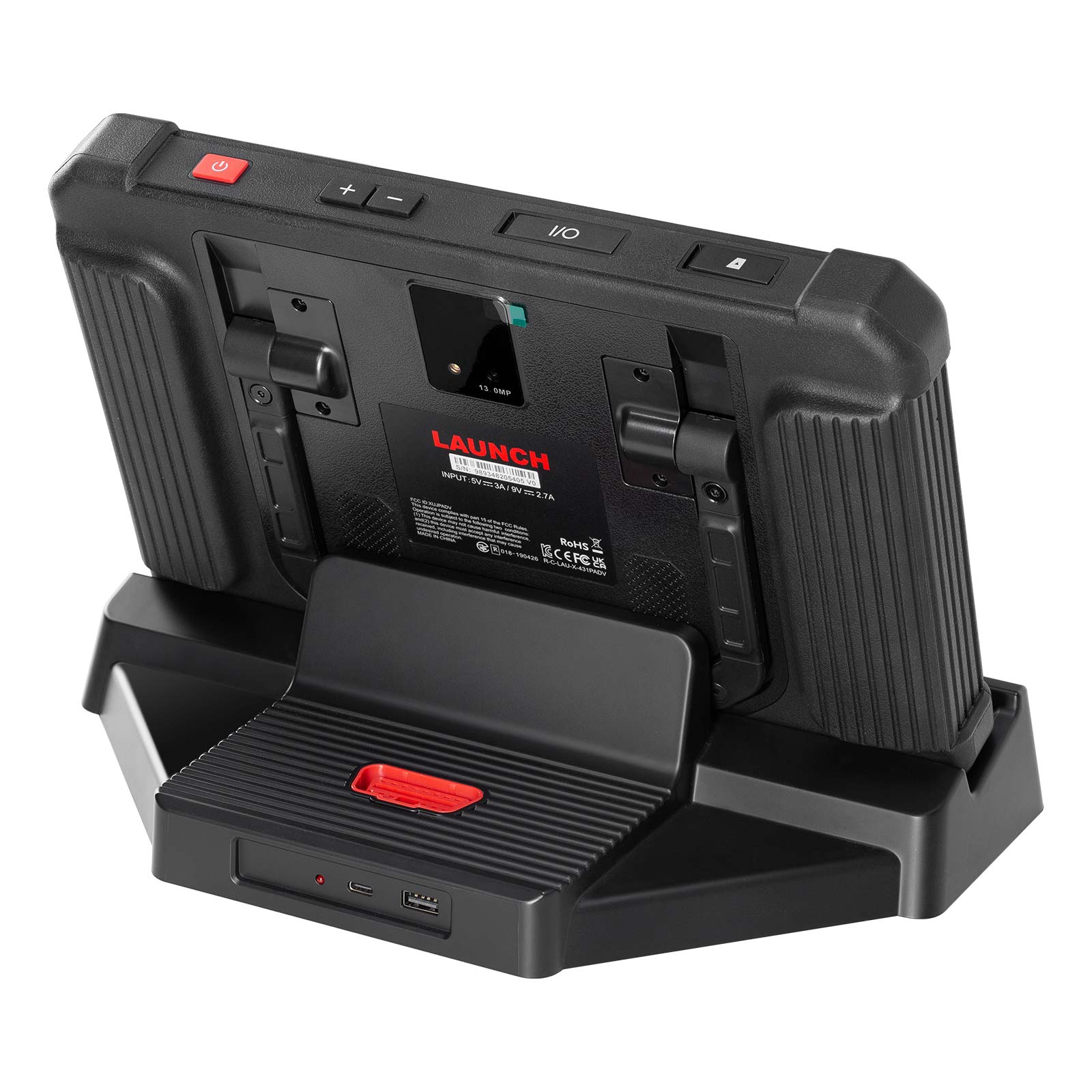

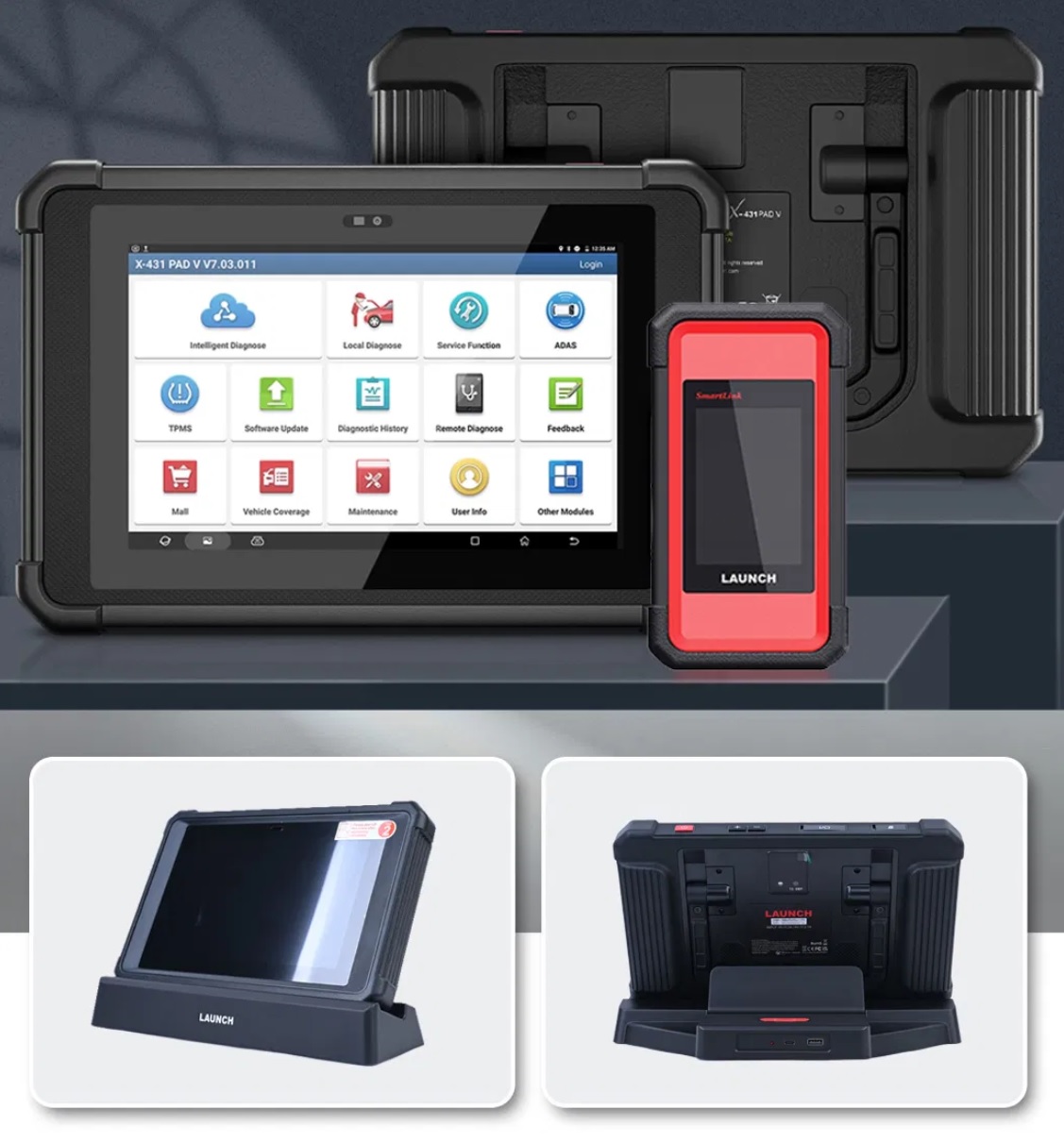

Professional Workshop Hardware

The PAD 5 ELITE features a large 10.1-inch touchscreen designed for workshop use, with a rugged IP65-rated housing providing protection against dust and water ingress.

The tablet also supports dual-band 2.4 GHz and 5 GHz Wi-Fi, USB Type-A and Type-C connectivity and wireless communication with the diagnostic interface.

Its high-capacity rechargeable battery is designed to provide extended use during workshop diagnostics.

Remote Diagnostics

The SmartLink platform supports remote diagnostic functions, allowing supported diagnostic operations to be performed remotely through the LAUNCH ecosystem.

This can be particularly useful when specialist diagnostic assistance is required from another technician or location.

Designed for Professional Workshops

The LAUNCH X-431 PAD 5 ELITE is suitable for:

• Independent garages
• Automotive repair workshops
• Diagnostic specialists
• Auto electricians
• ECU coding specialists
• Vehicle programming specialists
• Mobile mechanics
• Advanced DIY users
• Used-car preparation and inspection businesses

It provides considerably more functionality than a basic OBD2 code reader, giving technicians access to advanced vehicle diagnostics and supported coding/programming procedures.

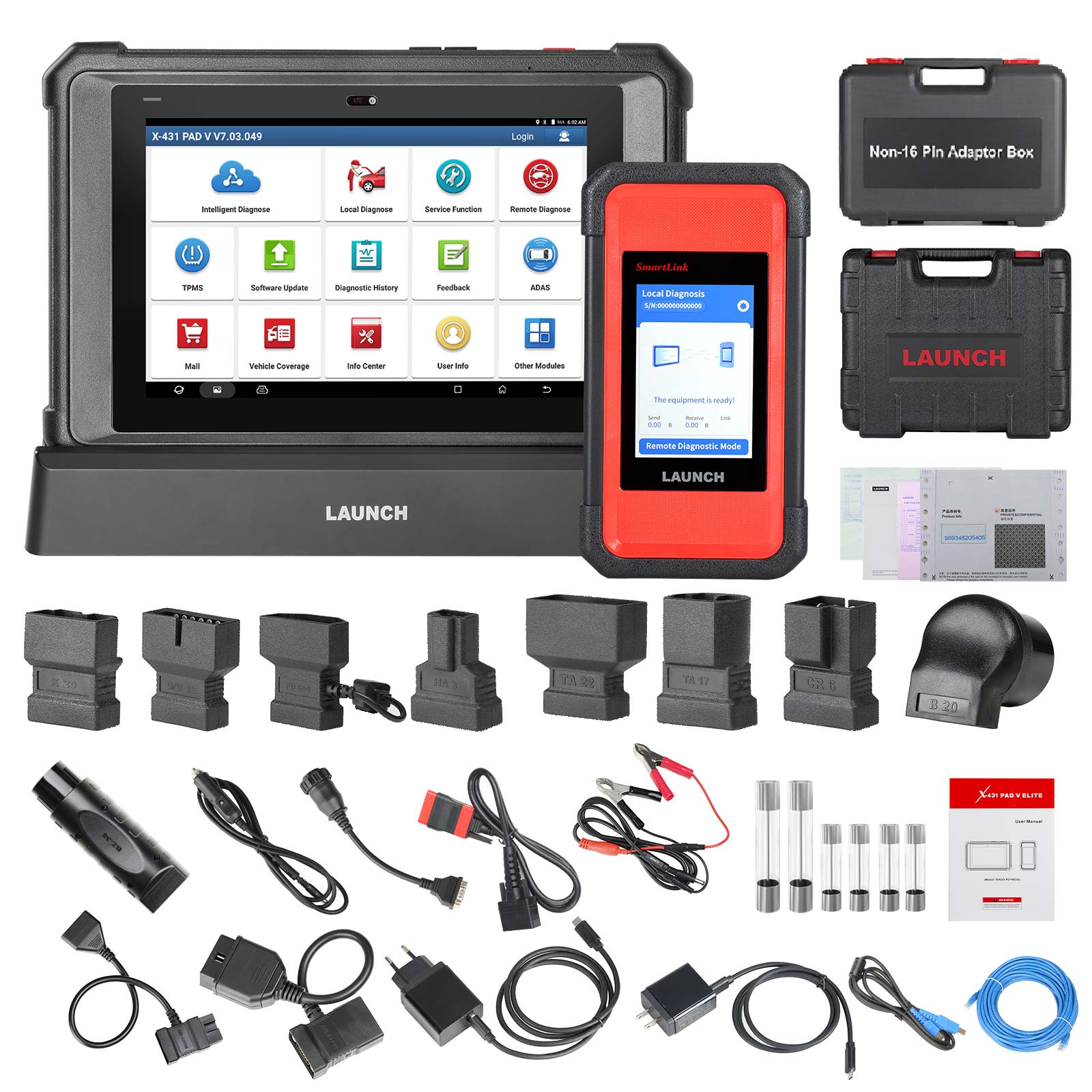

What’s Included

The supplied package includes the PAD 5 ELITE diagnostic tablet and compatible SmartLink diagnostic interface, together with the relevant cables and accessories supplied for this version.

Please check the exact package contents with us before purchase if you require specific manufacturer adapters or accessories.

Updates & Support

2 Years Free Software Updates

Your purchase includes 2 years of free LAUNCH software updates, helping maintain vehicle coverage and access to newly released diagnostic functions during the update period.

1 Year Warranty

The product is supplied with a 1-year warranty, with after-warranty service support available.

Why Buy from DigitalGadgets.ie?

• 🇮🇪 Stock located in Dublin
• 🚚 Fast delivery throughout Ireland
• 🔧 Professional diagnostic support
• 🔄 2 years free software updates
• 🛡️ 1-year warranty
• 🧾 VAT receipts available
• 💻 After-warranty service available

Product Summary

LAUNCH X-431 PAD 5 ELITE
Professional full-system diagnostic platform with:

✓ Full-system diagnostics
✓ Read & clear DTCs
✓ Live data & data graphing
✓ Bi-directional / active tests
✓ ECU coding
✓ Online coding
✓ ECU programming on supported vehicles
✓ J2534 Pass-Thru
✓ DoIP
✓ CAN FD
✓ Auto VIN
✓ Guided functions
✓ Advanced service functions
✓ TPMS functions
✓ Air suspension functions
✓ DPF regeneration
✓ Injector coding
✓ Battery registration
✓ ABS bleeding
✓ ADAS calibration capability
✓ Remote diagnostics
✓ SmartLink VCI
✓ 10.1-inch professional diagnostic tablet
✓ IP65-rated housing
✓ Dual-band Wi-Fi
✓ 2 years free updates
✓ 1-year warranty
