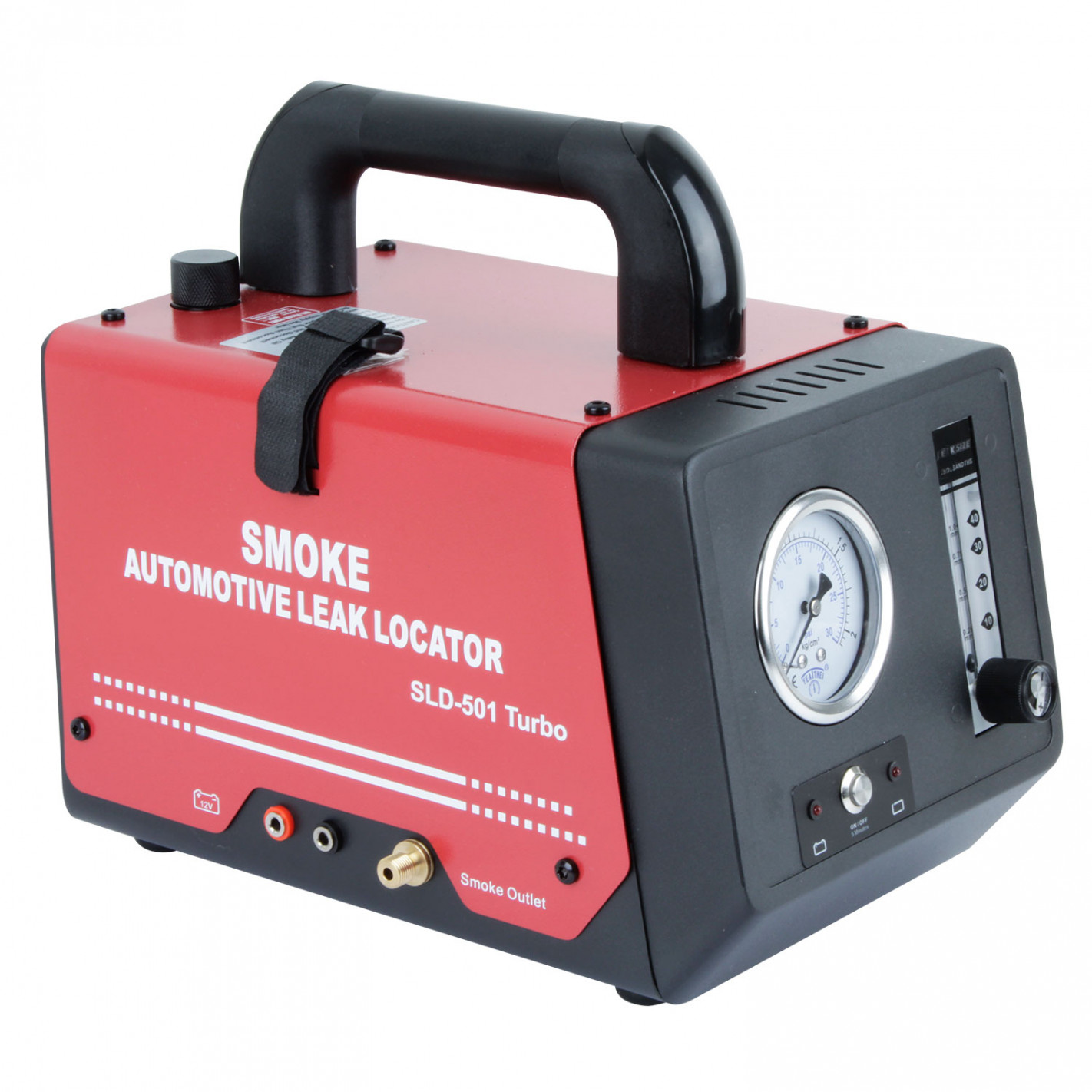

Launch SLD501 Smoke Machine

Launch SLD501 Smoke Machine allows detecting damages such as: cracks, damaged or worn seals, oil seals, hoses, loose connections, weakened clamps, etc. It is equipped with a built-in compressor that provides a flow of up to 10 l/min. The generator also allows detecting holes smaller than 0.2 mm using a special fluorescent liquid and UV light (optional).
Leak detection can be monitored through readings from the manometer and flow meter, or by the appearance of smoke at the leak site.
Advantages of the smoke generator:
Replaceable smoke supply hose and power cable.
Simple operation mode control with a single button.
Complete set of adapters and plugs along with spare consumables.
Manometer and adjustable flow meter to optimize device operation in any situation.
High-performance built-in air compressor (up to 10 l/min).
Support for UV method to detect leaks smaller than 0.2 mm.
Easy and accessible replacement of smoke liquid: pharmaceutical paraffin.
Note: do not use the SLD-501 TURBO model to test the EVAP system, as it may cause damage.Dimensions: 290 x 185 x 210 mm
Power supply voltage: 12 V
Inbuilt Air Compressor
Maximum pressure: 1.1 bar (14-16 Psi)
Operating temperature: 10 – 35°C

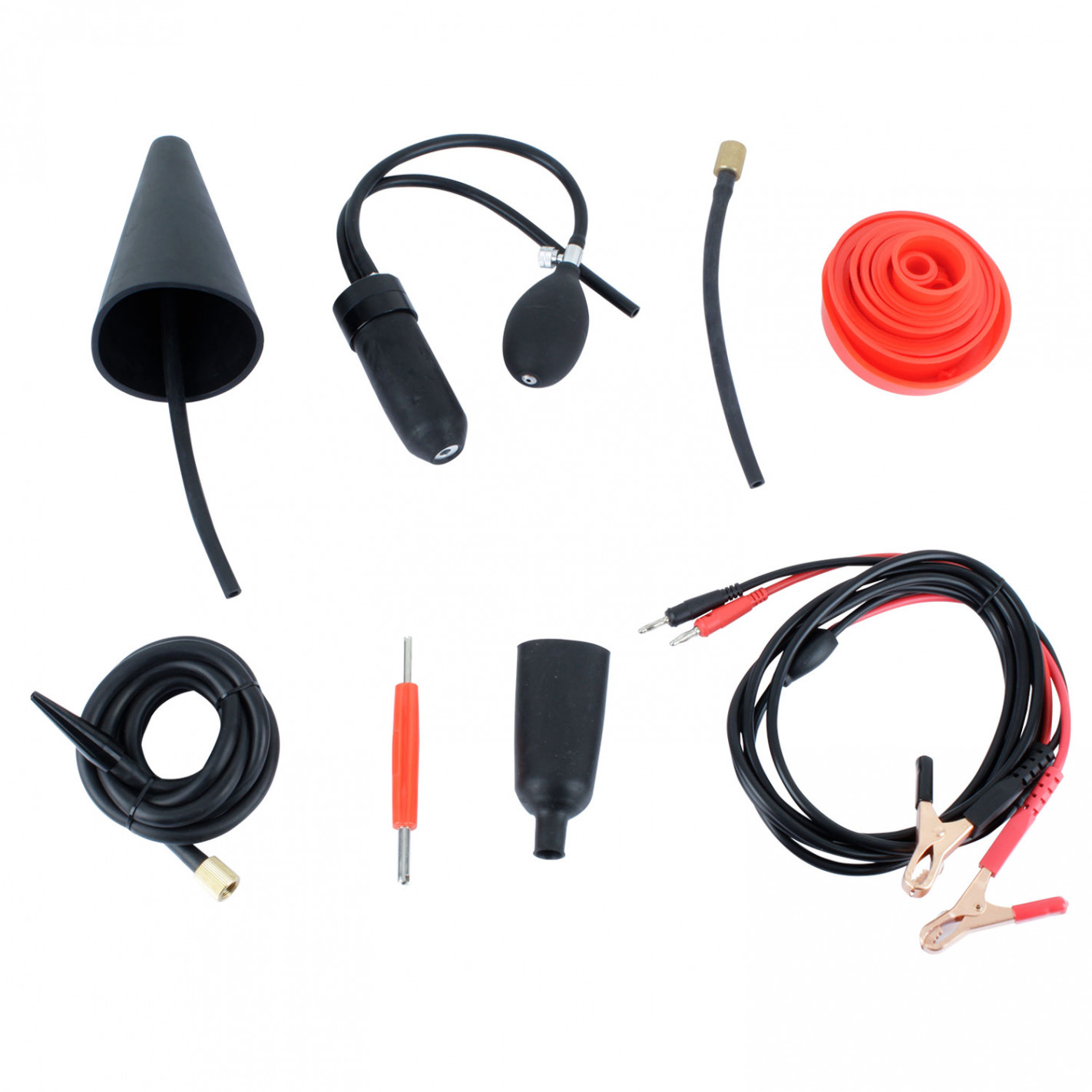

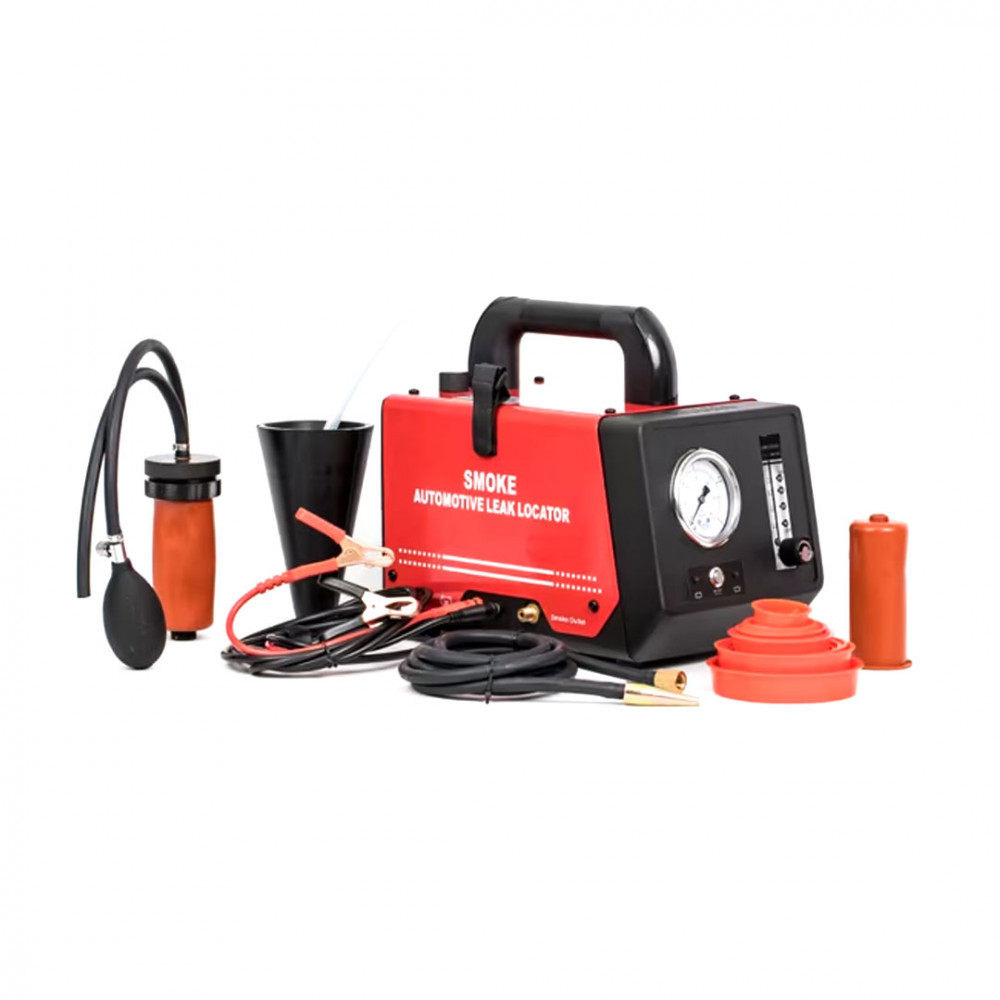

Smoke supply hose, Conical adapter, Universal adapter, Spare cover, Set of plugs, Power cables
Note: do not use the SLD-501 TURBO model to test the EVAP system, as it may cause damage.
1 Year warranty and after warranty service available.
Price Inc. VAT and Postage (VAT Receipts Available)
